Mninimal Frame Soft Closing Glass Sliding Door
Product Application
Foshan Samekom Door Co., Ltd with its 10 more years abundant experience, has specialized in producing aluminum frame doors from the very beginning till now. SAMEKOM laminated glass doors are the new trend for composite wood doors. These doors utilize a composite wood construction that results in a more durable door, resisting warping, shrinking and cracking better than a Solid Wood Door.The door facings are constructed with melamine paper meanwhile base material are artificial timber reflecting SAMEKOM's commitment to environmental harmony.
Mninimal frame soft closing glass sliding door features the simple and decent design with all the advantages of ultra slim aluminum frame and versatile glass patern.Each door is constructed like a pre-hung door so that it's easy to be installed,both minimal swing and sliding door are available. We have managed to be awarded with the certificates such as ISO, SGS, TUV and FSC which are highly recognized by the European Market.
Product Description1) Doors Size: | 2100mmx900mmx250mm (or customize) |
2)Door panel: | 7mm/8mm/10mm tempered glass |
5)Aluminum Frame(for door hole) | Soda Sand arc-shaped/Soda Sand flat surface/Wooden insert |
6)Hinges | Simple(Flag-shaped) hinges/Universal hinges/Hidden hinges |
7) Doors Lock | Aluminum Alloy |
8)Opening Direction: | Inward / outward |
9)Opening degree: | 90 or 180 |
10)Lock Handle Position: | On left / on right |
11)Colors: | Normal or Special Color. |
12)Design: | Diversified(Single/Double/Mother-son Door) |
13)Packing: | Foam board and plastic bag and strong carton |
14)Payment: | T/T 30% Deposit/ LC at sight |
15)Capacity: | Qty/20' FCL: 118pcs-162pcs
Qty/40' FCL: 248pcs-336pcs
Qty/40' HQ: 272pcs-384pcs |
16)Mini Order Quantity: | 5pcs(or less for sample) |
Main Features

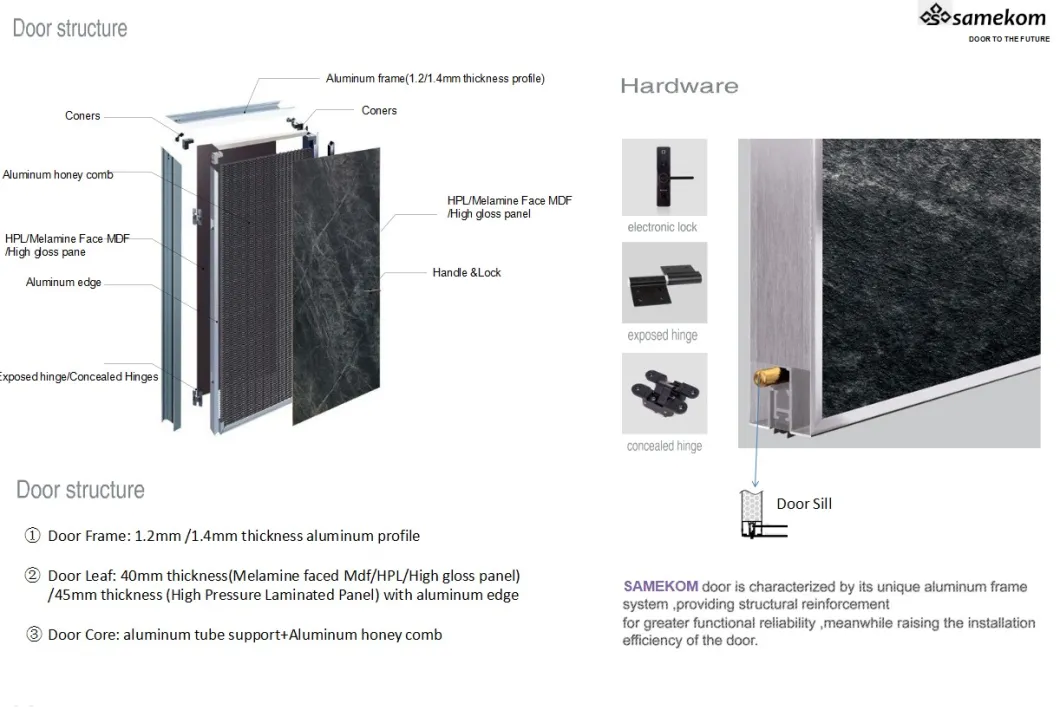

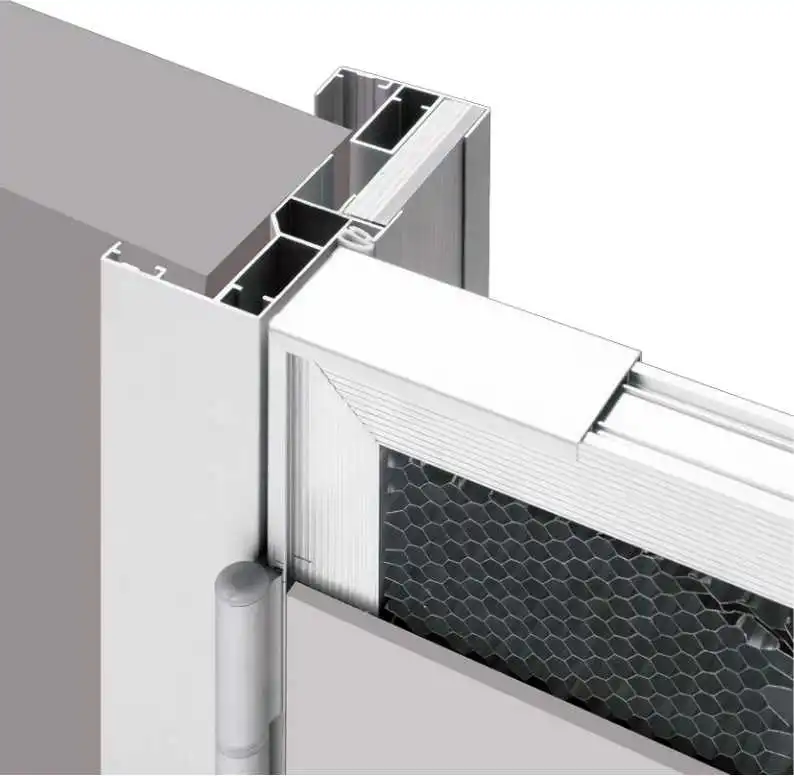

1.Framing:Anodized aluminum surface,outstanding crushing resistance.
2.Panel:no paint treatment,Bump-, scratch- and abrasion-proof,for HPL,even water- and fire-proof.
3.Two hinge versions available:
Concealed hinges adjustable on three axes and with 180°opening angle,delicate and flexible
Exposed hinges made of aluminum alloy with 180°opening angle,simple but stable.
4.100% customized doors are available with vision panel,louvers and transom.
5.Easy and fast installation,5 time faster than the tradition
Wood Door's installation.
6.QC in every single door before packing,One year quality guarantee,responsible after sale service.
Performance parameter:
Performance | Standard |
Sound insulation | RW≥28dB |
Wind pressure resistance | Third class (GB/T7106) |
Air permeation resistance | Third class (GB/T7108) |
Water resistance | third class (GB/T7108) |
Fireproof panel | GB-14101-93 |
Certificates
Pre-Sales Service
* Inquiry and consulting support.
* Professional comment and solution afford.
* View our Factory.
After-Sales Service
* Installation guidance or field installation.
* Issues following and resolving.
